Plan 219065A-Duplex
- 1600sq ft living
- 1982sq ft total
- 3bedrooms
- 2baths
One of our newer designs, sold through the office rather than the website. Send a request and we will call you back to talk it through and arrange the set.
Submit A RequestOr call the office — 225-216-2016, Mon–Thu 9–4
- Drawn in this office, not licensed from a catalog
- Same construction set and the same turnaround as any plan we sell
- Any part of this plan can be modified
About This Plan
A single-storey duplex of 1,600 square feet of living area per unit, under 1,982 square feet of roof per unit. The two dwellings are mirrored either side of a shared centre wall and are identical in layout.

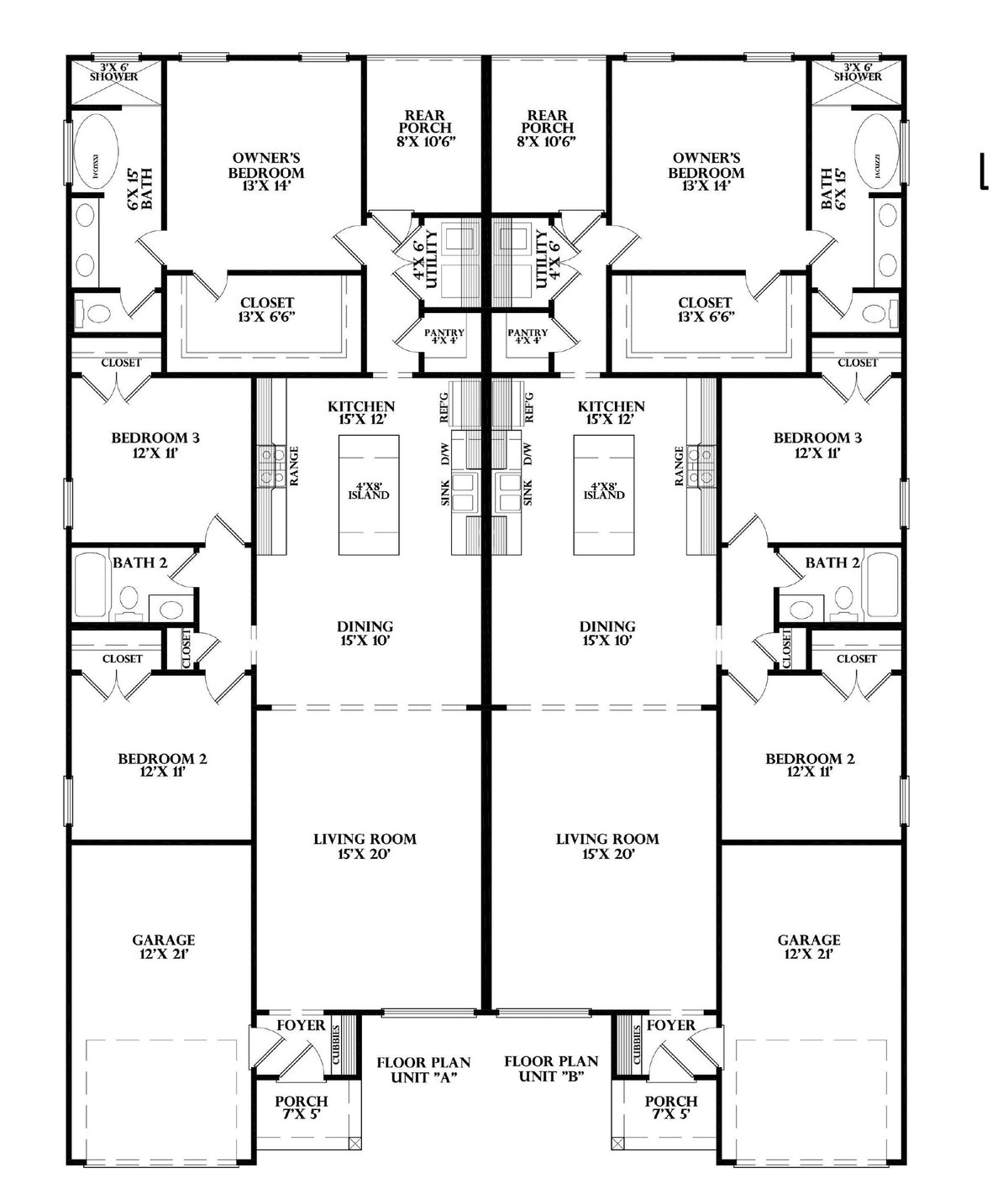

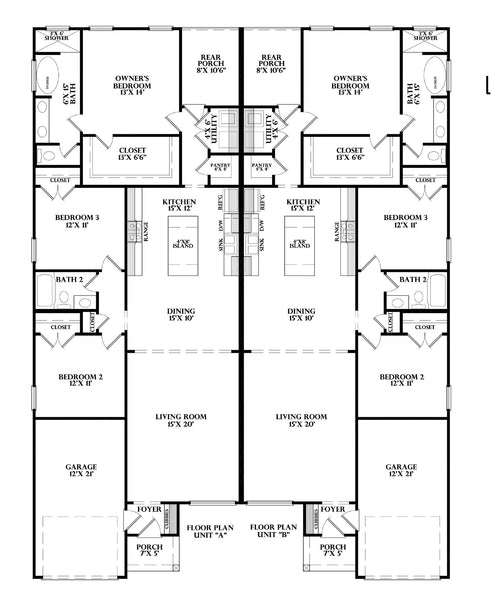

Three bedrooms per unit. The owner's bedroom measures 13' by 14' at the rear, with a 6' by 15' bath holding a soaking tub and a 3' by 6' shower, opening to a 13' by 6'6" closet. The living room runs 15' by 20' at the front of the plan, opening to a 15' by 10' dining area and a kitchen of 15' by 12' with a 4' by 8' island, a range wall and a 4' by 4' walk-in pantry. A 4' by 6' utility room sits between the kitchen and an 8' by 10'6" rear porch. Bedroom 2 at 12' by 11' and bedroom 3 at 12' by 11' share bath 2, each with its own closet. A foyer with cubbies opens off the 7' by 5' front porch. Single garage at 12' by 21'.
Each unit is entered from its own recessed porch, with a low courtyard wall and iron railing running between the two entries at the centre of the elevation.
This design is also drawn as a townhome row. See Plan 219065A-Townhome.
This plan is not sold online. Send a request or call the office at 225-216-2016 to purchase.
Room by room
The Floor Plan
Dimensions shown are to framing, before finishes. The set you receive is fully dimensioned at build scale.
The numbers
Plan Specifications
| Living area | 1600 sq ft |
|---|---|
| Porches, garage & storage | 382 sq ft |
| Total under roof | 1982 sq ft |
| Bedrooms | 3 |
| Bathrooms | 2 |
| Storeys | One |
| Plan number | 219065A-Duplex |
Square footage is taken from the plan sheet. Call the office if you need the overall width and depth for a specific lot.
What you receive
In The Construction Set
- Foundation plan
- Dimensioned floor plans for every level
- Exterior elevations, all four sides
- Building and wall sections
- Roof plan and framing
- Electrical, plumbing and HVAC layouts
- Interior elevations and cabinet details
- Door and window schedules
Also in this plan
- Duplex
Make it yours
Modify This Plan
Reversed sets, a widened footprint, a relocated garage, an added bedroom, a reworked kitchen. All routine. Quoted flat, and nothing changes on the drawings until you approve the price.
